RUYEE MACHINERY CO., LTD
10 Years
| Ask Lasest Price | |
| Brand Name : | XCMG |
| Model Number : | QY12 |
| Certification : | ISO |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 50 sets |
| Delivery Time : | 1 week |
| Feature: | Truck Crane | Condition: | used | Application: | Construction |
| Rated Loading Capacity: | 12000kg | Rated Lifting Moment: | 410kN.m | Max. Lifting Load: | 12t |
| Max. Lifting Height: | 20.8m | Span: | 8.6m | Place of Origin: | China |
| Brand Name: | XCMG | Model Number: | QY12 | Certification: | ISO |
| Packaging Detail: | No package |
| Delivery Detail: | 7 days |

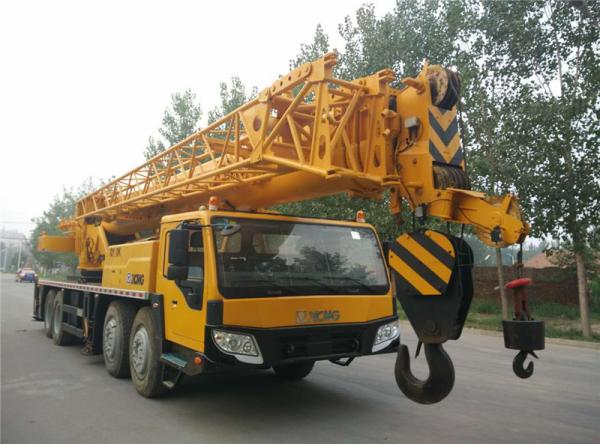

XCMG 12t truck crane, crane, XCMG truck crane, XCMG crane, XCMG
mobile crane,XCMG
Fast delivery,comparative price
Contact Us
Contact person: Mr. lee
Mobile: 0086 18856922711
Email: salecrane @hotmail.com
Whatsapp: +86 18856922711 (IMO, Viber)
WeChat: +8618856922711
Services
As a leading used construction equipment supplier in China, we have
years of experience in this field.
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient
XCMG truck crane , Crane XCMG , XCMG MOBILE crane, XCMG HYDRULIC MOBILE crane ,XCMG HYDRULIC MOBILE truck crane
QY12 Truck Crane
QY12 is a truck crane with hydraulic drive, full swing and telescopic boom, step-less speed variation for various operation mechanisms.
The whole vehicle conforms to 46 standards of China National Compulsory Inspection. Marker lamps are installed at the front, middle and rear. Side protection fenders are fitted for the vehicle.
Adoption of Eurocompliant D6114ZLQ5B or WD415.21 engine.
A load weighing device equipped in operator's cab can display load lifting capacity and give a warning when overload occurs, ensuring the safety in lifting operation.
3-section main telescopic boom and single cylinder for front support elevating.
Two-pump flow can be combined for the winch to improve working efficiency.
Jib is available for option.
Well-equipped safety devices such as relief valve, hydraulic lock, hoist limit switch, working radius indicator and stabilizer.
Double H-shaped outriggers operated from both sides of the chassis are used for support and leveling of the vehicle.
Simple structure, light weight and good mobility.
Main Technical Specifications 12 tons Truck crane
Technical Data for Lifting Operation
Classificatory | Item | Unit | Parameter | |
Engine | Model | D6114 | ||
Outline dimension | Overall length | mm | 10200 | |
Overall width | mm | 2500 | ||
Overall height | mm | 3200 | ||
Wheel base | mm | 4500 | ||
Track | Front wheel | mm | 2090 | |
Rear wheel | mm | 1880 | ||
Mass | Total mass in travel state | kg | 16000 | |
Axle load | Axle 1 | kg | 6000 | |
Axle 2 | kg | 10000 | ||
Travel performance | Max. travel speed | km/h | 72 | |
Min. turning diameter | m | 18000 | ||
Min. ground clearance | mm | 260 | ||
Approach angle | () | 22 | ||
Departure angle | () | 11 | ||
Braking distance (at 30km/h with full load) | m | 9.5 | ||
Max. grade-ability | 26 | |||
Fuel consumption for 100km | L | 30 | ||
Power | Engine rated output | KW/(r/min) | 158/2200 | |
Engine rated torque | N.m/( r/min) | 790/1400 | ||
Engine rated speed | r/min | 2200 | ||
|
|
